Pallet Stretch Wrap Turntable Machines
Packaging Midlands supplies both an entry level and advanced option for wrapping pallets.
The Optimax® range has been designed for businesses that need to move away from hand pallet wrapping to an automated system. Optimax® has easy-to-use controls that are ideal for businesses introducing this type of technology. The machines use our machine stretch wrap, have a 1650mm turntable, a 2000kg capacity and a 2000mm wrap height. Top of Form
- The Optimax PSW001 is an entry level machine. Please see below for full specifications.
- The Optimax PSW004 is a more advanced machine. Please see below for full specifications.
- Our machines offer solutions for any business with medium to high levels of pallets to wrap daily.
- We offer two machines in the range and both come with pre-set programming offering consistent wrap quality.
- All products come with a full 12 month return to base manufacturer’s warranty.

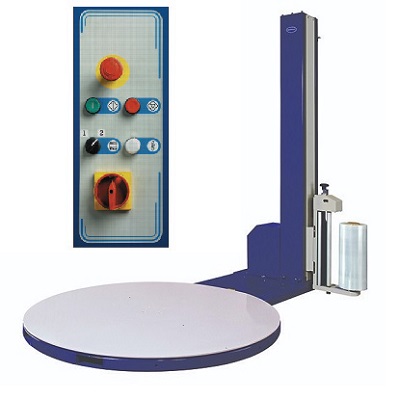

Model PSW001 Optimax®Automatic Pallet Stretch Wrap Turntable Machine
|
Model Type |
Optimax PSW001 |
|
Use |
Automatic Stretch Wrapper Machine |
|
Dimensions (WxDxH) |
1650 x 2465 x 2338mm |
|
Max Wrapping Height |
2000mm |
|
Max Loading Weight |
1650kg |
|
Turntable Diameter |
1650mm |
|
Colour |
Blue (As Pictured) |
|
Power Supply |
230-240V, 13A 50-60Hz Single Phase |
|
Weight |
368kg |
|
Loading Ramp |
Optional ( Additional Purchase) |
The Optimax PSW001 Pallet Stretch Wrapper is the perfect introduction to automated pallet stretch wrapping and designed for businesses that wrap up to 100 pallets a day. The machine provides pre-set programming and consistent wrap quality for the packaging professional. This machine can wrap between 20-25 pallets per hour. It is a very low maintenance machine and is the perfect starting choice for automated pallet wrapping.
- Adjustable spring brake activated film stretch mechanism
- Single start/stop turntable position and magnetic brake for easy loading/offloading
- Choice of 3 x lower wraps + 2 x top wraps and 2 x lower wraps + 1 x top wrap
- Soft start and stop functions
- Mid-cycle pause function
- Optional loading ramp (PSWR) for pallet trucks
- Turntable height 75mm
- Turntable diameter 1650mm
- Maximum loading weight 1650kg
- Maximum wrapping width/length 1200 x 1200mm
- Maximum wrapping height 2000mm
- Maximum turntable speed 10rpm
- Power supply 240V 13A
- Power consumption 1.2kW
- Dimensions (W x D x H) 2465 x 1650 x 2338mm
- Weight 368kg

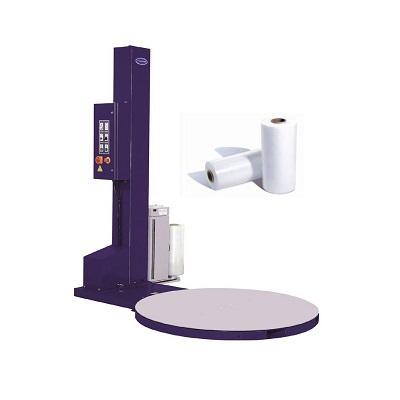

Model PSW004 Optimax®Automatic Pallet Stretch Wrap Turntable Machine
|
Model Type |
Optimax PSW004 |
|
Use |
Automatic Stretch Wrapper Machine |
|
Dimensions (WxDxH) |
1650 x 2400 x 2545mm |
|
Max Wrapping Height |
2000mm |
|
Max Loading Weight |
1650kg |
|
Turntable Diameter |
1650mm |
|
Colour |
Blue (As Pictured) |
|
Power Supply |
240V, 13A Single Phase |
|
Weight |
450kg |
|
Loading Ramp |
Optional ( Additional Purchase) |
The Optimax PSW004 Pallet Stretch Wrapper is fixed with 200% powered pre-stretch. It is designed to maximise film use by pre-stretching the film during application. The electronic control system allows greater versatility than the PSW001, delivering optimum results for every pallet wrapping application. It is designed to be able to give 200% stretch on power pre stretch wrap – giving a large saving on the cost of material (1 metre of film stretches to 3 metres). It is designed for medium-large users of machine pallet wrap.
- Powered pre-stretch extends film length by 200% for more secure wrapping and reduced film use
- Single start/stop turntable position and magnetic brake for easy loading/offloading
- 180 degree rotating electronic control panel
- Fully programmable wrapping configuration
- Soft start and stop functions
- Advanced soft wrapping regulates the film tension as the pallet rotates to avoid over-tensioning on corners which can cause carton damage
- Mid-cycle reinforcement function enables greater strength at required points
- Top cover pause function allows insertion of separate top cover before wrapping resumes
- Automatic film cut-off
- Optional loading ramp (PSWR) for pallet trucks
- Turntable height 82mm
- Turntable diameter 1500mm
- Maximum loading weight 1650kg
- Maximum wrapping width/length 1050 x 1050mm
- Maximum wrapping height 2200mm
- Maximum turntable speed 12rpm
- Power supply 240V 13A
- Power consumption 1.2kW
- Dimensions (W x D x H) 2400 x 1650 x 2545mm
- Weight 450kg.

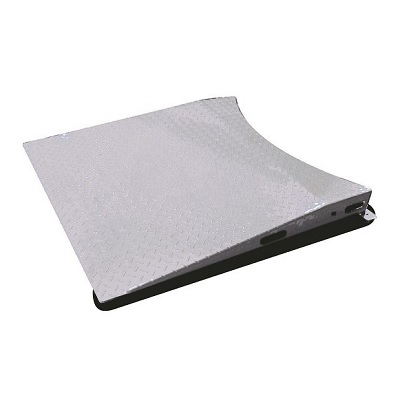

Loading Ramp with Fixer for Optimax®Pallet Wrapper Turntable Machinery
|
Product Code |
Optimax PSWR |
|
PSWR
|
Allows loading and offloading of pallets with a pallet truck. |
Optional loading ramp for Optimax® pallet wrapping turntables that enables pallet truck loading and unloading.
- Fits securely to all Optimax® pallet wrapping turntables.
- Allows loading and offloading of pallets with a pallet truck.
- Weight 45kg.
